CAMDER HS series

Inquiry
SHARE TO :

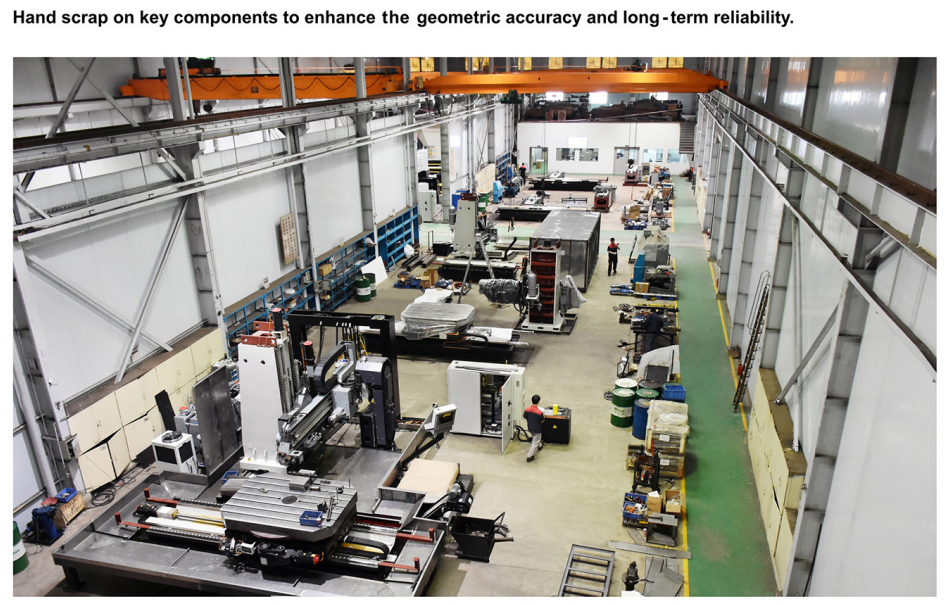

Advantages

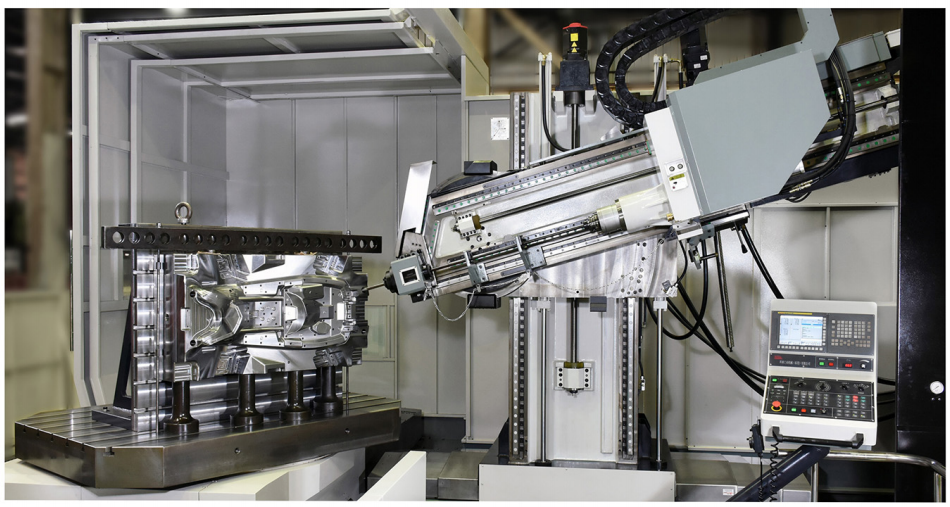

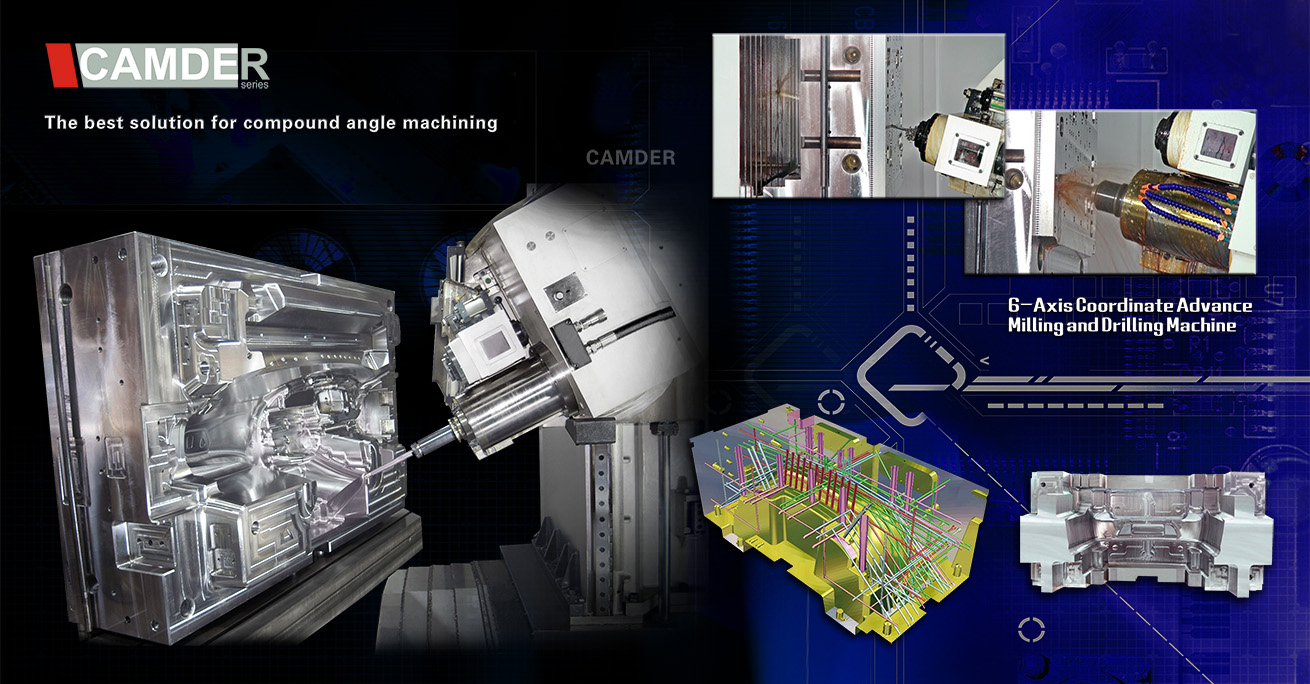

Heavy type: Equipped with advanced FANUC 6-axis CNC system with AICC high precision
contour machining,a deep hole drilling machine integrated with milling function.










Specifications

  • Parameter
  • Diagram
  • Floor Plan

  Model Unit 2.6HS3.6HS 2.6H 3.6H
Drilling capacityGun drill machining hole diameter mm 3 to 50 3 to 50 3 to 50 3 to 50
Ejector drill machining hole diameter mm 18 to 50 18 to 65 18 to 65 18 to 65
Maximum drilling depth in gun drill  operation mm 1500+550 1500+550  1500+550 1500+550
Maximum drilling depth in ejector drill operation mm 10001000 1000 1000
Tapping capacity - M30x3.5 M36x4  M36x4 M36x4
Milling capacity cc/min 300 400400  400
TravelTable horizontal (X) mm 2500 30002500 3000
Ram travel (Y) mm 2000 2000 20002000
Column horizontal (Z) mm 1000 10001000  1000

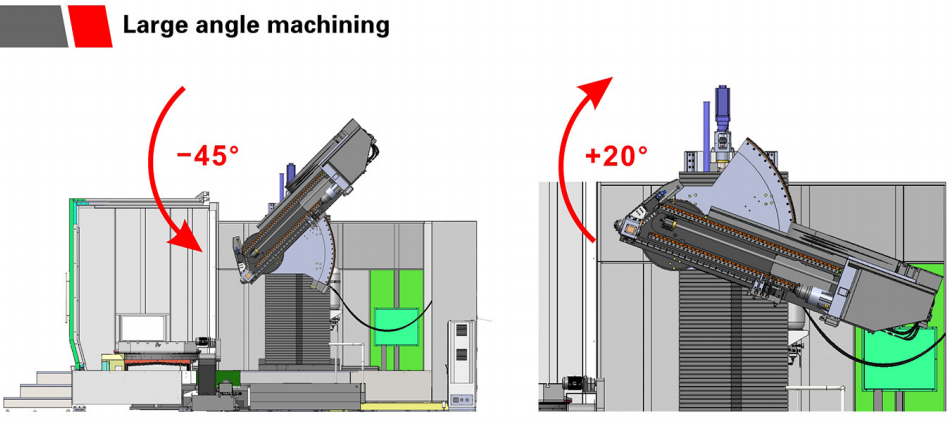

Ram tilting travel (A) -Clockwise20°,counterclockwise 45°Clockwise20°,counterclockwise 45°Clockwise20°,counterclockwise 45° Clockwise20°,counterclockwise 45°
Spindle center to table top mm  0 to 1500  0 to 1500  0 to 1500    0 to 1500
Distance from table center to spindle  nose mm 430 to 1430 530 to 1330 430 to 1430  530 to 1430
SpindleSpindle bore taper - BT50  BT50   BT50    BT50
Maximum spindle speed rpm 4000 4000  4000 4000
SpeedX/Y/Z/W Rapid traverse rate  m/min88 1010
Ram maximum tilting speed (A) Degree/min215215 215215
Table maximum rotation speed (B) rpm22 22
PowerSpindle motor kW15/18.5(15min)15/18.5(15min)15/22(30min) 15/22(30min)
X axis servo motor N.m2727 3030
Y axis servo motor N.m3636 3838
Z axis servo motor N.m2727 3838
W axis servo motor N.m27 27  3030
A axis servo motor N.m2727 3030
B axis servo motor N.m3636 3030
Total power requirement kW 6464 7777
CNC indexing   worktableMaximum loading capacity ton203020 30
Size (Length x Width) mm2200x16002400x18002200x1600 2400x1800
Coolant systemCoolant pressure (gun drill) MPa2 to 112 to 112 to 11 2 to 11
Coolant pressure (ejector drill) MPa1.0 to 2.01.0 to 2.0 1.0 to 2.01.0 to 2.0
Rate of flow (gun drill) L/min6 to 1206 to 1406 to 140 6 to 140
Rate of flow (ejector drill) L/min40 to 12540 to 125 40 to 16340 to 163
Size and weightFloor space required mm9750x82009850x8450 9750x82009850x8450
Machine height mm45804580 45804580
Machine weight ton424542 45
CNC system - -FANUC 0i-MFFANUC 0i-MF FANUC 0i-MFFANUC 0i-MF

 Design & specifications are subject to change without prior notice!

Accessories

  • Standard Accessories
  • Optional Accessories


 Design & specifications are subject to change without prior notice!


 Design & specifications are subject to change without prior notice!
